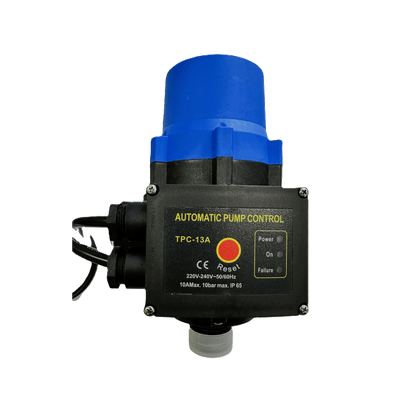

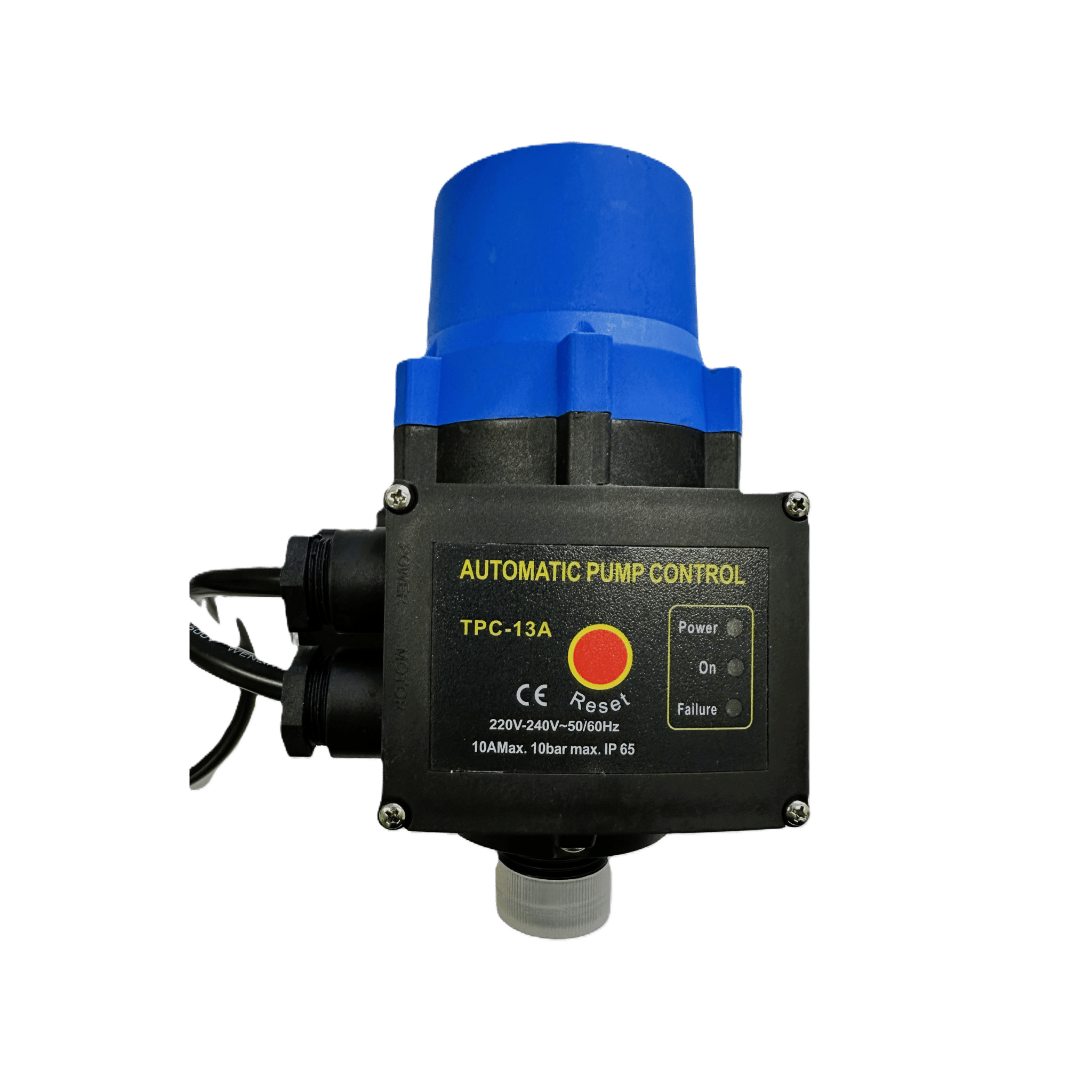

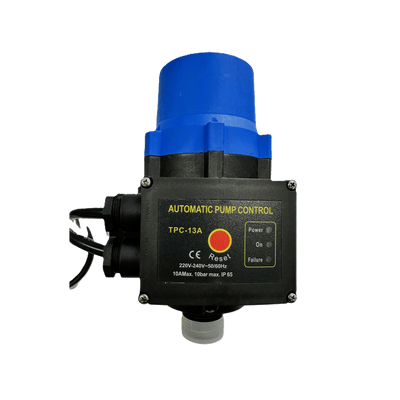

TPC-13A 240V Pressure Pump Controller
SKU: EEA001
The Pressure Pump Controller 13A is an advanced automatic electronic 240v pump controller designed to start and stop a water pump whenever a tap is opened or closed. Built for consistent and reliable water pressure, the controller allows the pump to run even at low flow rates while offering full dry‑run protection.
The unit includes an Auto Restart feature that automatically attempts to restart the pump every 24 hours to check for water availability. With an adjustable starting pressure between 1.5 and 3.0 bar and pressure gauge that can be mounted on either side of the controller to suit your installation.
The controller provides flexibility to suit a wide range of household or rainwater system installations.
Designed with durability in mind, Pressure Pump Controller 13A features IP65 ingress protection, a robust housing, LED status indicators, and a pre‑wired power lead for straightforward installation.
This Pump controller is designed to work with Electric Pressure Pumps.
Model: TPC-13A
Pairs well with
TPC-13A 240V Pressure Pump Controller
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Tech Specs
What's in the box and set up requirements
Pressure Pump Controller 13A
Pre‑wired 2.0 m lead with plug
Pump power lead
Pump Specs
| Voltage: | 240V |
| Maximum Current: | 10A |
| Maximum Power (kW): | 1.1 kW |
| Frequency: | 50 Hz |
| Ingress Protection: | IP65 |
| Max Water Temperature: | 60°C |
| Starting Pressure: | 1.5 – 3.0 bar (adjustable) |
| Maximum Pressure: | 10 bar |
| Minimum Flow: | 1.2 L/min |
Key System Components
- Inlet: 1″ BSP male
- Outlet: 1″ BSP male
- Special non‑return valve to avoid surges
- Security system to prevent pump operation without water

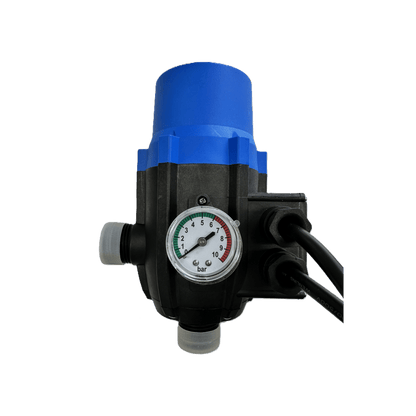

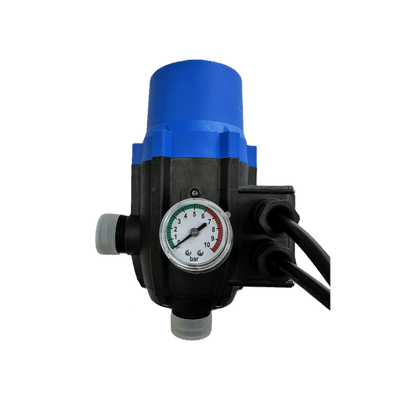

- Pressure gauge included
- Manual start switch (RESET)
- LED indicators:
- Power (Voltage LED – “POWER”)
- Pump Running (Pump LED – “ON”)
- Failure (Security LED – “FAILURE”)
- 2.0 m power lead with 3‑pin plug
- 0.6 m pump power lead, stripped and terminated
