4H2200/3800-3-EXT ACDC Solar Pump Package
SKU: SSP061C
We’ve enhanced our ACDC Hybrid Pump system to give you greater control and flexibility. Previously, the controller was built directly into the motor. The latest model now features an external control box — the controller is now relocated outside the motor which enables adjustable speed functionality.
Prefer the original design? No problem! You can still purchase motors with internal controllers by calling our team directly.
Built to last in Australia's tough agricultural environment, and Compliant with Australian Standards, this pump delivers strong volumes that maintain great volumes up to 190m of head. This head level is currently the highest in our Solar range. Our standard package comes complete with a ton of extras and 8 x 475w custom built mono-crystalline solar panels for optimal performance. With our hybrid pumps, you can enjoy years of reliable and maintenance free water supply with Tuhorse!
Model: 4CW2.2-EXT
A-16 Flow Rate:
| Head (m) | 10-40 | 50 | 70 | 100 | 130 | 160 | 190 | 220 |
| L/Min | 90-83 | 80 | 74 | 64 | 53 | 38 | 24 | 6 |
BF-11 Flow Rate:
| Head (m) | 10 | 30 | 50 | 70 | 90 | 110 | 130 | 150 |
| L/Min | 142 | 128 | 115 | 100 | 83 | 63 | 27 | 4 |
ST6-144 Flow Rate:
| Head (m) | 10 | 30 | 60 | 90 | 120 | 150 | 180 | 210 |
| L/Min | 110 | 104 | 88 | 71 | 52 | 41 | 30 | 15 |
14/165 Flow Rate:
| Head (m) | 10 | 30 | 50 | 70 | 90 | 110 | 130 | 150 |
| L/Min | 209 | 180 | 138 | 94 | 63 | 44 | 26 | 9 |
19/90 Flow Rate:
| Head (m) | 10-20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| L/Min | 301-260 | 211 | 156 | 111 | 78 | 55 | 31 | 8 |
Pairs well with
4H2200/3800-3-EXT ACDC Solar Pump Package
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Tech Specs

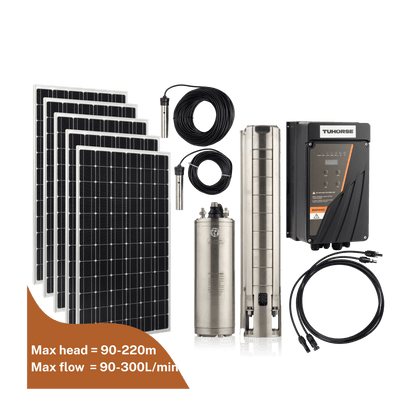

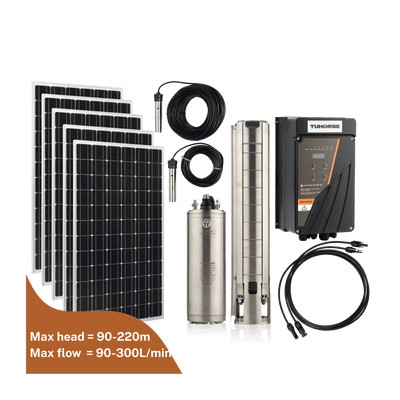

What's in the box and set up requirements
8 x 475W monocrystalline A grade solar panels

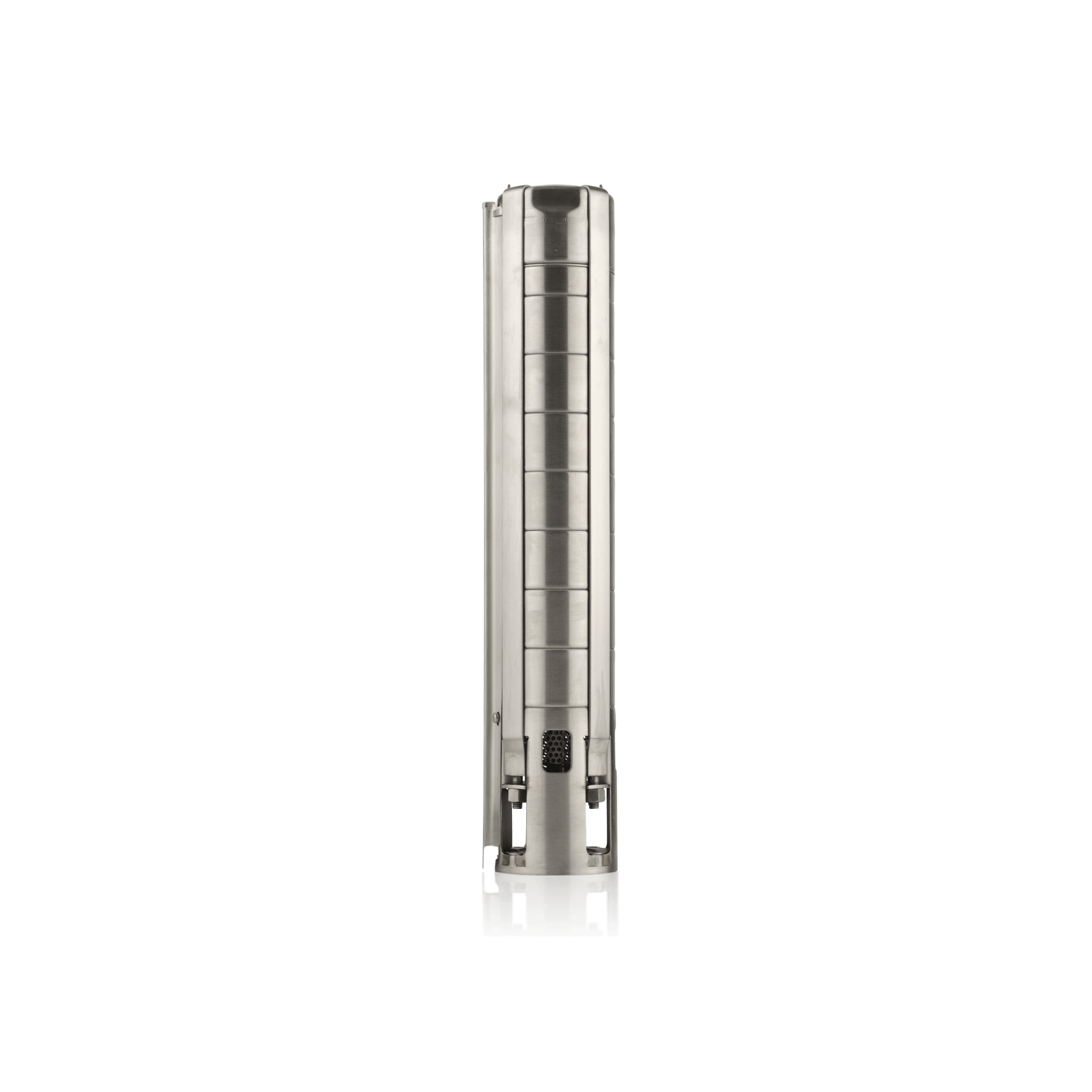

4" ACDC pump with 3M power cable and choice of pump end
Control Box
DC Isolator switch
2 x MC4 extension cable for connecting solar panels to the control box
1 x 40M & 10M combined water sensor (for bore and water tank)
User manual
24 months (Pump & Control Box) back to base (Sydney) warranty
Why Choose This Pump?
This pump is suitable for a 5" or larger bore and is most suitable for head between 10-190m. It is used for pumping water from rivers, dams, creeks and springs or transferring water from one site to another.
Discover why Tuhorse is Australia's most trusted pump for efficiency and reliability.
Pump Specs
Motor:
| Motor Power: | 3HP/2.2kw |
| Motor Weight: | 13kg |
| Dimension: | 95mm x 805mm |
A-16
| Pump power: | 2200W |
| Pump Type: | Centrifugal |
| Maximum Head: | 220m |
| Maximum Flow: | 5,400 L/hour |
| Maximum Submersion depth: | 100m |
| Outlet: | 1.25" |
BF-11
| Pump power: | 2200W |
| Pump Type: | Centrifugal |
| Maximum Head: | 150m |
| Maximum Flow: | 8,520 L/Hour |
| Maximum Submersion depth: | 100m |
| Outlet: | 1.5" |
ST6-144
| Pump power: | 2200W |
| Pump Type: | Centrifugal |
| Maximum Head: | 210m |
| Maximum Flow: | 6,600 L/Hour |
| Maximum Submersion depth: | 100m |
| Outlet: | 2.0" |
14/165
| Pump power: | 2200W |
| Pump Type: | Centrifugal |
| Maximum Head: | 150m |
| Maximum Flow: | 12,540 L/Hour |
| Maximum Submersion depth: | 100m |
| Outlet: | 2.0" |
19/90
| Pump power: | 2200W |
| Pump Type: | Centrifugal |
| Maximum Head: | 90m |
| Maximum Flow: | 18,060 L/hour |
| Maximum Submersion depth: | 100m |
| Outlet: | 2.0" |
Key System Components

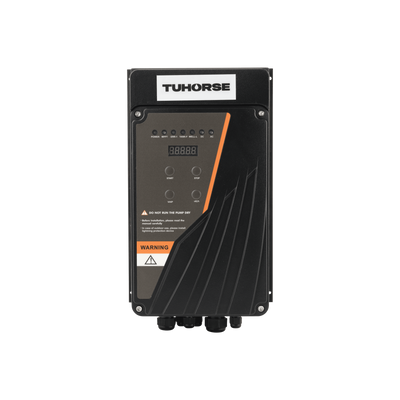

Tuhorse Auto Control Box capable of utilizing both DC and AC power to run the pump. Built specifically for our 2,200W motor. Input maximum open circuit voltage (Voc) of Solar Panels = 430VDC
Also compatible with Single-Phase AC power: 240V/50Hz
Includes 8 x 475w monocrystalline panels for optimal performance.
Tuhorse 475W panel specification:
| Weight: | 21.5kg |
| Dimensions: | 1762mm x 1134mm x 30mm |
| Max. Open circuit voltage (Voc): | 36.76V |
| Max. Power voltage (Vmp): | 31.19V |
| Max. Power Current (Imp): | 15.23A |
