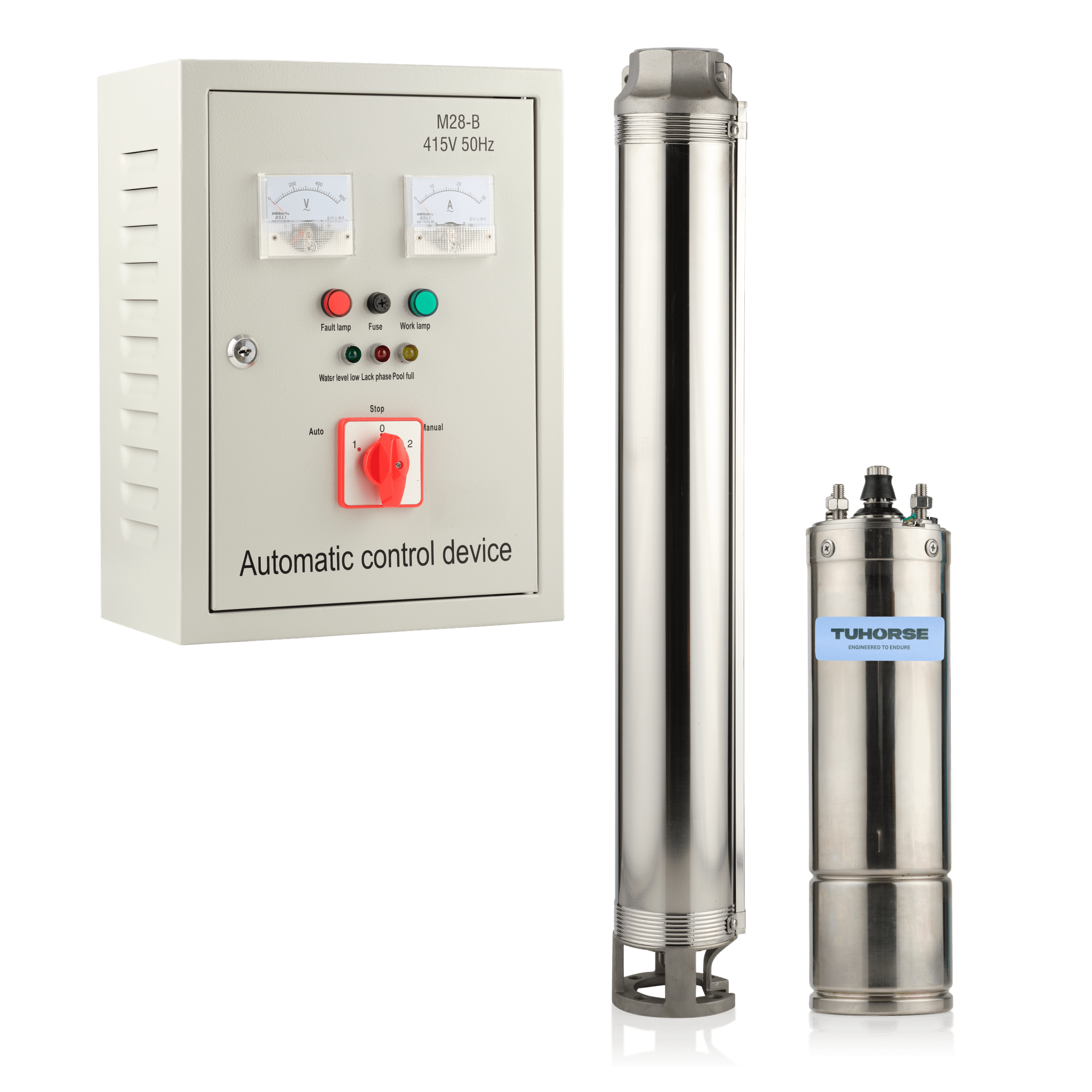

4" 5.5HP/415V MA-17 Submersible Bore Pump Package
SKU: EEP023
Tuhorse 4" Bore Pump – 5.5HP Power, 415V
Reliable 5.5hp Pump & Motor with Auto Control Box featuring 6 water sensors for automated water level management.
Suitable for 5" or larger bore wells, dams, or rivers
| Head (m) | 110 | 92 | 85 | 82 | 75 | 65 | 55 | 45 |
| L/min | 0 | 83 | 117 | 133 | 167 | 200 | 233 | 267 |
Tech Specs
Pump Specs
| Power: | 5.5HP/4kw |
| Model: | MA-17 |
| Voltage: | Three Phase 415V/50Hz |
| Current: | 10.3A |
| Power cable Length: | 2.2m Flat water proof cable |
| Power cable Width: | 4 x 2mm |
| Max Heads: | 110M |
| Max Flow: | 267L/min |
| Maximum Submersion depth: | 100m |
| Inlet/Outlet: | 2" |
| Weight: | 32kg |
| Pump Dimension: | 2211mm x 100mm |
| Warranty: | 12 months return to base warranty in Australia |
What's in the box and set up requirements
4" 5.5HP 415V/50Hz Motor
Tuhorse MA-17/5.5HP Pump End
Auto Control box
This pump should be installed by a certified Electrician
Key System Components

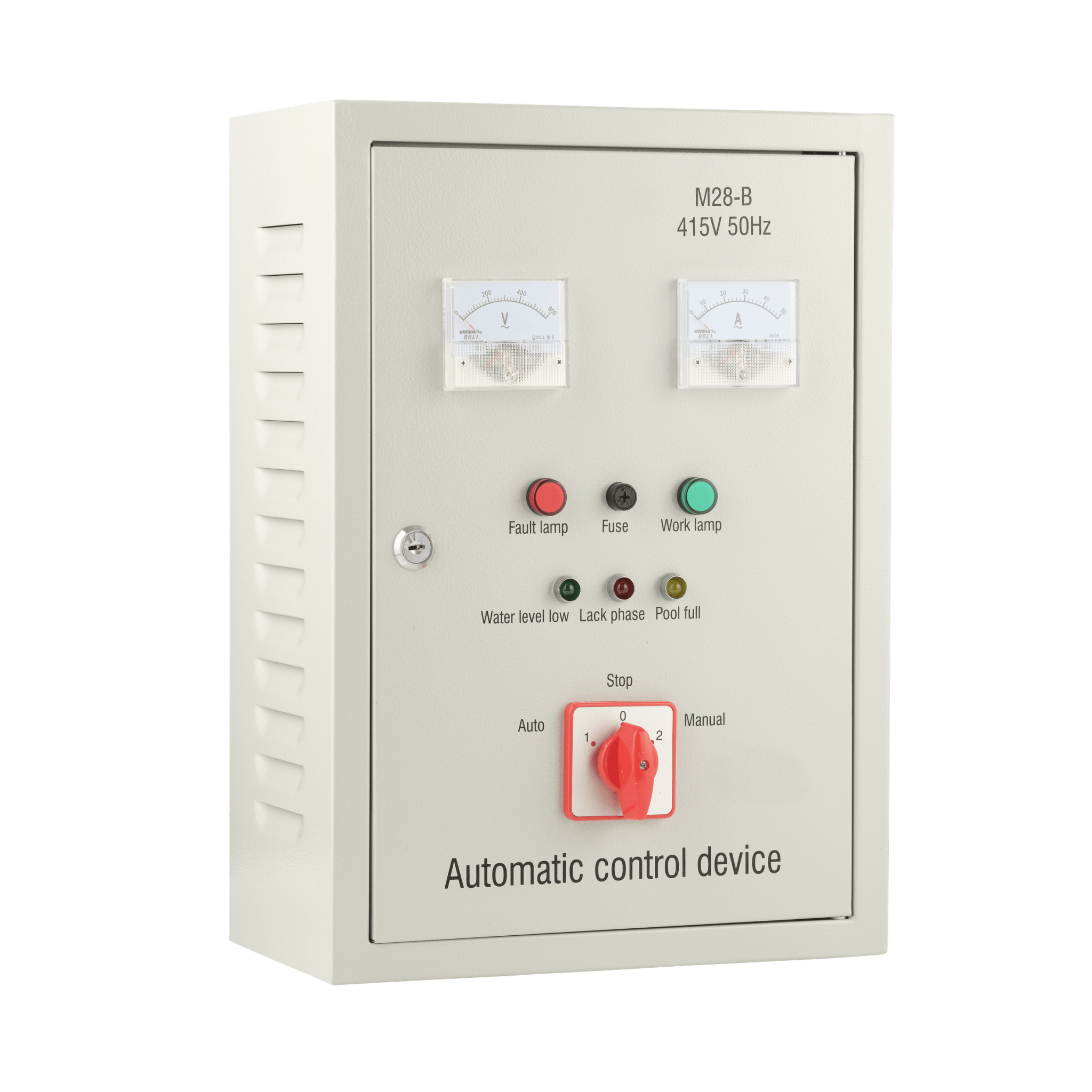

Auto Control Box Specifications
| Power: | 5.5hp/4kw |
| Voltage: | Three phase 415V/50Hz |
| Rated Current: | 10A |
| Water sensors voltage: | 10V-12V |
| Control Switch: | Auto/Manual |
This is an automatic control box which is designed for 415V/50Hz three phase pumps. When the automatic control box is installed, the pump will turn on and off automatically according to the water levels of both the tank and the well. If you switch the box to manual, it can work like a starter box.
Why Choose This Pump?
The 5.5HP motor provides strong pumping capacity, ideal for deep boreholes or high water demand situations.
The 415V 3-phase power supply ensures efficient and stable operation, especially for continuous or heavy-duty use.
The Auto Control Box with 6 water sensors for intelligent water level detection. It automatically shuts off or restarts based on bore or tank levels-no manual monitoring needed.
