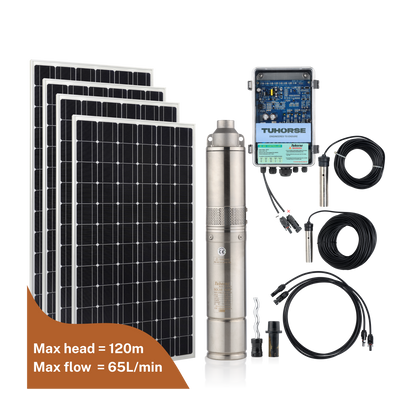

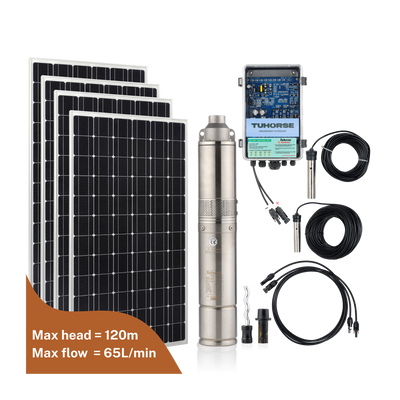

4S1000-40/1600 Submersible Solar Pump Package
SKU: SSP016

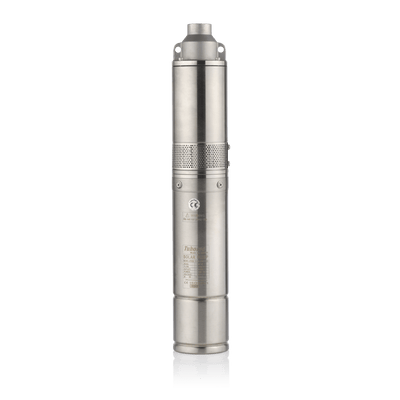

Our 4" 1000w solar submersible pump with 40m of cable features an advanced 3-phase brushless stainless steel DC motor, high quality NSK Japanese bearings, adjustable pump speed, integrated soft start and Maximum Power Point Tracking (MPPT). With max flows up to 3,900L/hr at a price that can't be beat, you will quickly see why this pump is one of our biggest sellers.
Built to last in Australia's tough agricultural environment, this pump delivers strong volumes up to 120m of head. Our standard package comes complete with a ton of extras and 8 x 200w monocrystalline solar panels for optimal performance. With our easy DIY installation, you can enjoy years of reliable and maintenance free water supply with Tuhorse!
Model: 4THS2.5-140-110/1000
Pump Performance
| Head (m) | 10 - 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| L/min | 65 - 58 | 57 | 54 | 50 | 47 | 42 | 35 | 27 | 15 |
Tech Specs
Pump Specs
| Pump power: | 1000W/110V-DC |
| Pump type: | Helical Screw |
| Maximum Head: | 120m |
| Maximum flow: | 3,900 litres per hour |
| Maximum Submersion depth: | 40m |
| Outlet: | 1" |
| Weight: | 17kg |
| Dimension: | 555mm x 105mm |
What's in the box and set up requirements

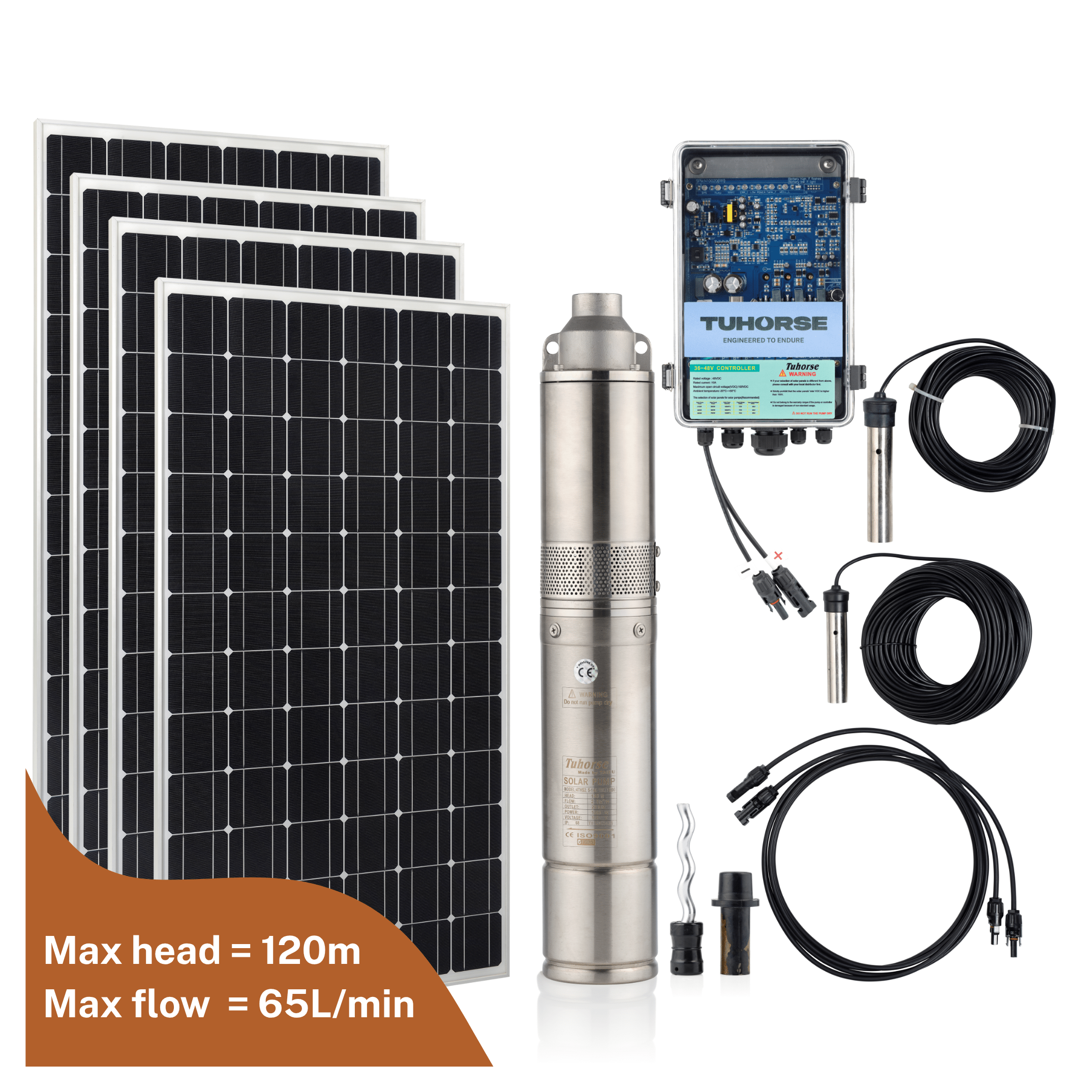

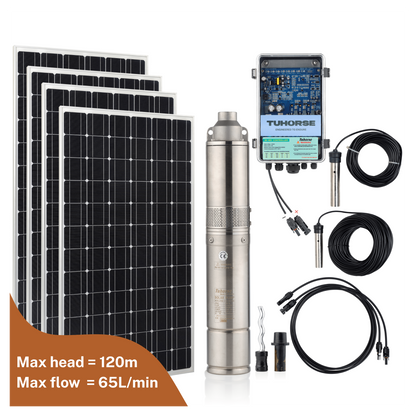

Your Package includes:
- 4" 1000w/110V stainless steel solar pump with 40M power cable
- 8 x 200W mono crystalline A grade solar panels.
- Auto control box
- One spare helical screw rotor
- 2 x MC4 extension cable for solar panels connect to control box
- 1 x 40M & 10M combined water sensor (for bore and water tank)
- User manual
- 36 months (Pump & Control Box) back to base (Sydney) warranty
Additional Items required for Installation:
- Poly delivery pipe General recommendation is 1.5” (40mm) or higher, high pressure/blue line poly
- Stainless Steel Safety Cable/Wire
- Non-return valve Installed right above the pump or on top of the bore
- Solar Panel Mounting Frame- Self Built or alternatively a Clenergy Solar Panel Mounting Kit
- Dam float- if pumping from a dam/river
- Bore Cap- if pumping from a bore
- Pressure switch- if tank is far away
- Double acting float valve- if using a Pressure Switch
- Flex conduit- to bury your cables
- Poly pipe connector/joiner + elbow + thread tape
Key System Components
Tuhorse's more powerful 96v-110v Auto Control Box required for pump power 1000W or greater.
Input maximum open circuit voltage (Voc): 200V/DC
Includes 8 x 200w monocrystalline panels for optimal performance.
Tuhorse 200W panel specification:
| Weight: | 16kgs |
| Dimensions: | 1580mm x 810mm x 35mm. |
| Max. Open circuit voltage (Voc): | 45.48V. |
| Max. Power voltage (Vmp): | 37.89V |
| Max. Power Current (Imp): | 5.28A |
Why Choose This Pump?
This pump is suitable for a 5" or larger bore and is most suitable for head between 10-120m. It is used for pumping water from rivers, dams, creeks and springs or transferring water from one site to another.
It is easy to install and costs nothing to run after installation. Discover why Tuhorse is Australia's most trusted pump for efficiency and reliability.
