3S500C-40/800 Centrifugal Submersible Solar Pump Package
SKU: SSP058
Our 3"500w Centrifugal solar submersible pump with 40m of cable features an advanced brushless stainless steel DC motor, high quality NSK Japanese bearings, adjustable pump speed, integrated soft start, adjustable pump speed and Maximum Power Point Tracking (MPPT).
With max flows up to 2300L/hr at a price that can't be beat, you will quickly see why this pump is one of our biggest sellers.
Built to last in Australia's tough agricultural environment, this pump delivers strong volumes up to 60m of head. Our standard package comes complete with a ton of extras and 2 x 200w monocrystalline solar panels for optimal performance. With our easy DIY installation, you can enjoy years of reliable and maintenance free water supply with Tuhorse!
Model: 3THSC2-80-18/500
Pump Performance:
| Head (m) | 10 | 20 | 30 | 40 | 50 | 60 |
| L/min | 51 | 46 | 39 | 32 | 23 | 13 |
Pairs well with
3S500C-40/800 Centrifugal Submersible Solar Pump Package
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Tech Specs

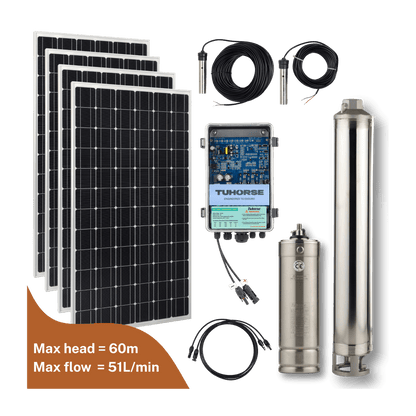

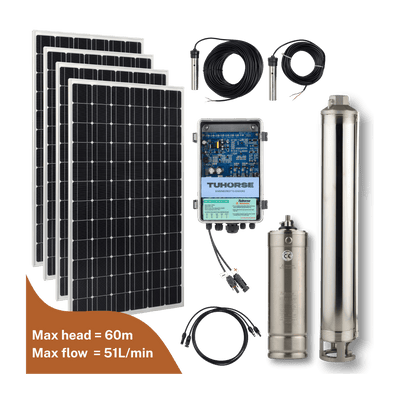

What's in the box and set up requirements
2 x 200W mono crystalline A grade solar panels.

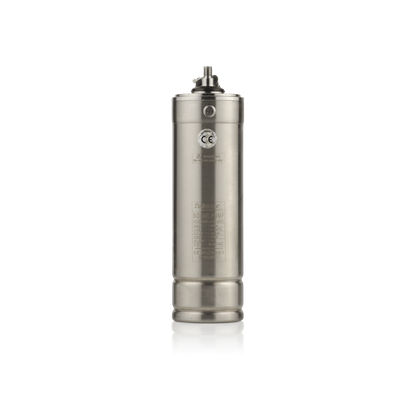

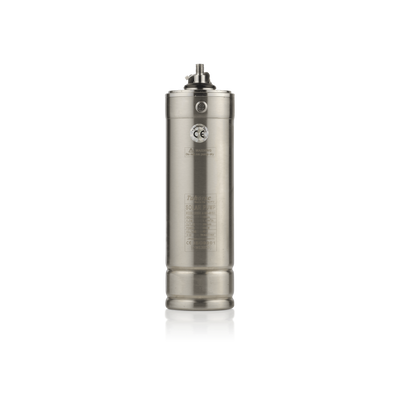

3" 500w/48V stainless steel Centrifugal solar pump with 40M power cable
Auto control box
2 x MC4 extension cable for solar panels connect to control box
1 x 40M & 10M combined water sensor (for bore and water tank)
User manual
24 months (Pump & Control Box) back to base (Sydney) warranty
Why Choose This Pump?
Centrifugal solar bore pumps use an impeller to create centrifugal force, moving water at high flow rates but with relatively low pressure. They are best suited for shallow bores and applications where large volumes of water are needed quickly, such as irrigation or livestock watering. These pumps are generally lighter, simpler, and require less maintenance, making them cost-effective for situations with ample solar power and low head requirements.
Screw solar bore pumps, on the other hand, use a helical rotor in a positive displacement design to deliver water at lower flow rates but much higher pressure. This makes them ideal for deep bores, high-head applications, and systems that need consistent water delivery, such as drinking water or drip irrigation. They start easily in low sunlight, run longer hours, and handle sandy or viscous water better, though they require more maintenance over time due to rotor and stator wear.
Pump Specs
| Pump power: | 500w / 48V‑DC |
| Pump type: | Centrifugal |
| Maximum Head: | 60m |
| Maximum flow: | 3,060 litres per hour |
| Outlet: | 1" |
| Weight: | 13kg |
| Dimension: | 465mm x 75mm |
Key System Components
Tuhorse's 36v–48v Auto Control Box is suitable for a range of 2"–4" solar pumps, with input maximum open circuit voltage (Voc) of 100V/DC.
Input maximum open circuit voltage (Voc): 100V/DC
Includes 4 x 200w monocrystalline panels for optimal performance.

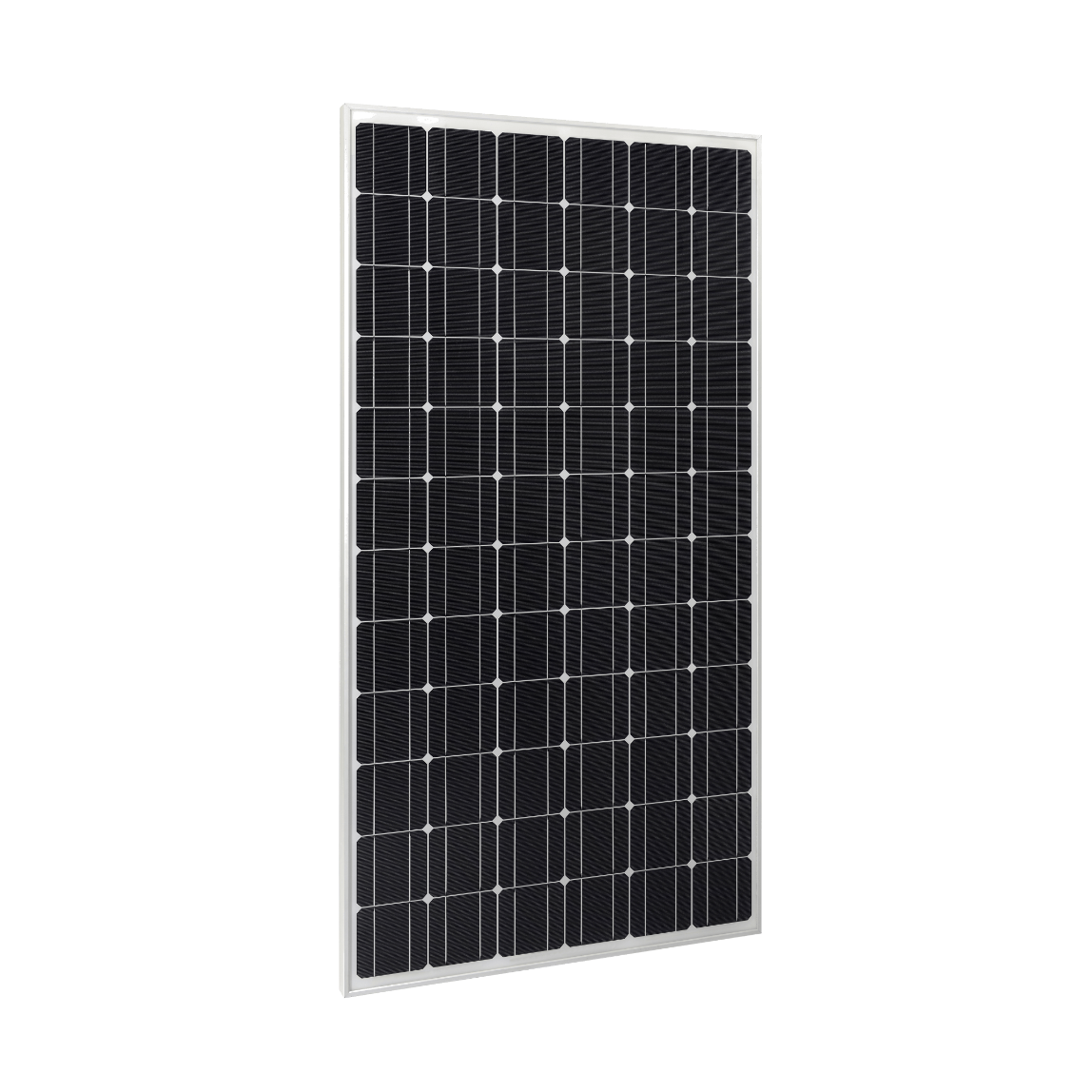

Tuhorse 200W panel specification:
| Weight: | 16kg |
| Dimensions: | 1580mm x 810mm x 35mm |
| Max. Open circuit voltage (Voc): | 45.48V |
| Max. Power voltage (Vmp): | 37.89V |
| Max. Power current (Imp): | 5.28A |
