3S500-40/400 Submersible Solar Pump Package
SKU: SSP008
Our 3" 500w solar submersible pump with 40m of cable features an advanced 3-phase brushless stainless steel DC motor, high quality NSK Japanese bearings, adjustable pump speed, integrated soft start and Maximum Power Point Tracking (MPPT). With max flows over 1,900L/hr at a price that can't be beat, you will quickly see why this pump is one of our biggest sellers.
Built to last in Australia's tough agricultural environment, this pump delivers reliable volumes up to 60m of head. This package comes complete with a ton of extras and 2x200w monocrystalline solar panels. With our easy DIY installation, you can enjoy years of reliable and maintenance free water supply with Tuhorse!
Model: 3THS1.4-100-48/500
Pump Performance
| Head (m) | 10 | 20 | 30 | 40 | 50 | 60 | 70 |
| L/min | 33 | 27 | 21 | 15 | 10 | 7 | 5 |
Pairs well with
3S500-40/400 Submersible Solar Pump Package
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Tech Specs

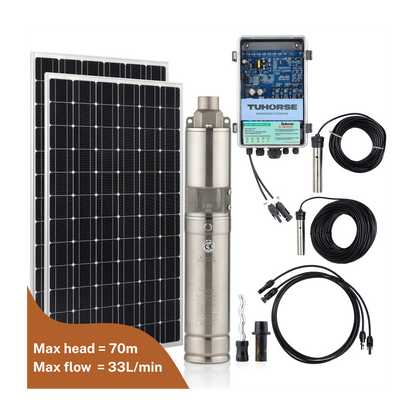

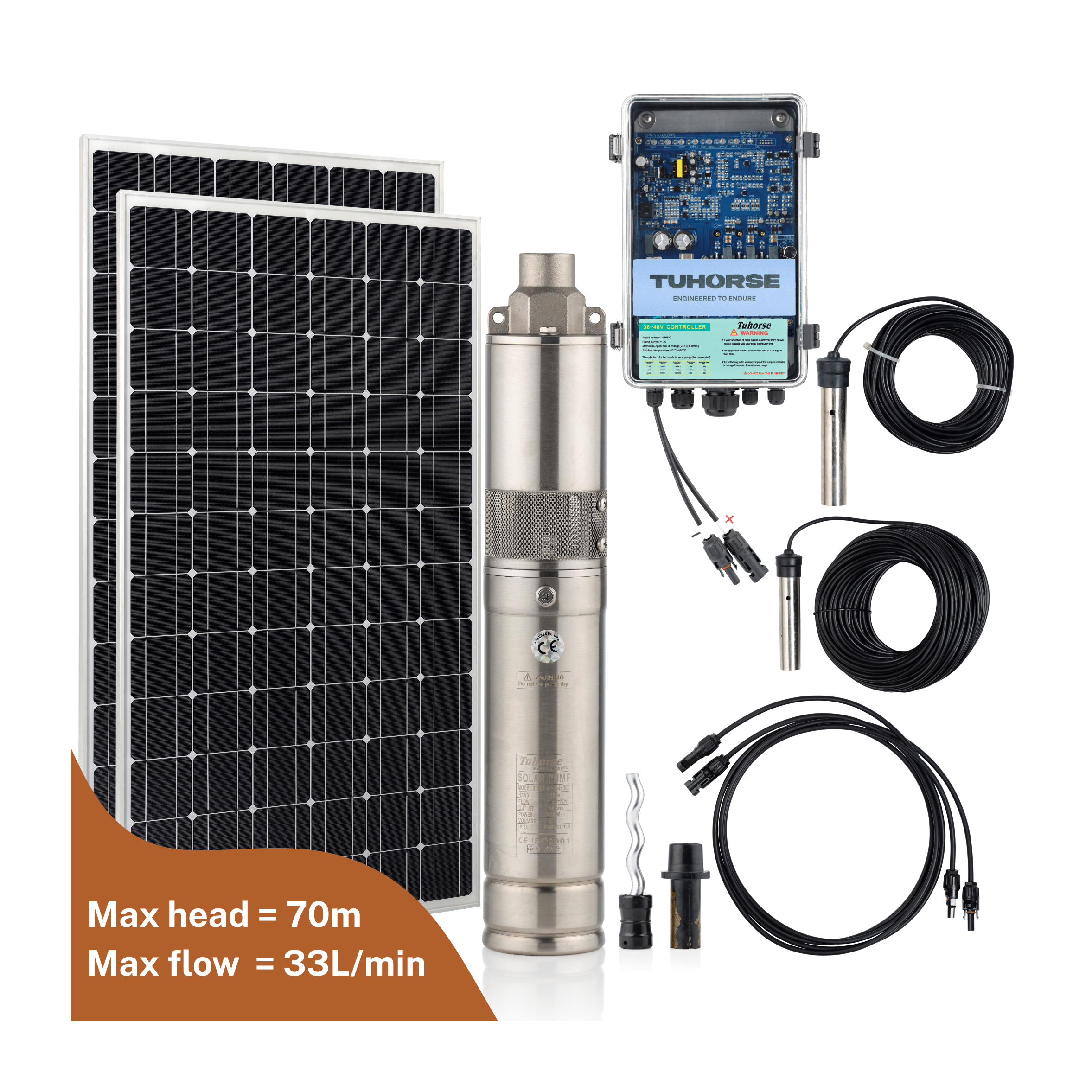

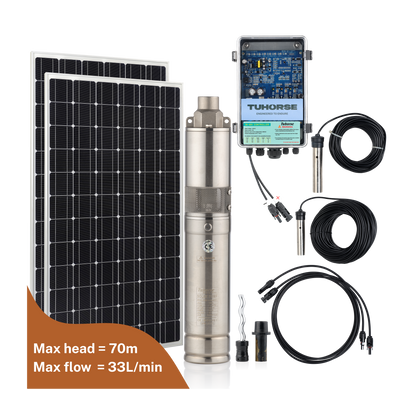

What's in the box and set up requirements
2 x 200W mono crystalline A grade solar panels.
3"500w/48V stainless steel solar pump with 40M power cable
Auto control box
One spare helical screw rotor
2 x MC4 extension cable for connecting solar panels to the control box
1 x 40M & 10M combined water sensor ( for bore and water tank)
User manual
24 months (Pump & Control Box) back to base (Sydney) warranty
Why Choose This Pump?
This pump is suitable for a 4" or larger bore with best results between 10m and 60m of head. It is used for pumping water from rivers, dams, creeks and springs or transferring water from one site to another.
It is easy to install and costs nothing to run after installation. Discover why Tuhorse is Australia's most trusted pump for efficiency and reliability.
Pump Specs
| Pump power: | 500W/48V-DC |
| Pump type: | Helical Screw |
| Maximum Head: | 60m |
| Maximum flow: | 1,900 litres per hour |
| Maximum Submersion depth: | 40m |
| Outlet: | 0.75" |
| Weight: | 13kg |
| Dimension: | 75mm x 430mm |
Key System Components
Tuhorse's 36v-48v Auto Control Box is suitable for a range of 2"-4" solar pumps.
Input maximum open circuit voltage (Voc): 100V/DC
Includes 2 x 200w monocrystalline panels for optimal performance.
Tuhorse 200W panel specification:
| Weight: | 16kgs |
| Dimensions: | 1580mm x 810mm x 35mm |
| Max. Open circuit voltage (Voc): | 45.48V |
| Max. Power voltage (Vmp): | 37.89V |
| Max. Power Current (Imp): | 5.28A |
