3S500-40 Submersible Solar Pump Package
SKU: SSP007
Our 3" 500w solar submersible pump with 40m of cable features an advanced 3-phase brushless stainless steel DC motor, high quality NSK Japanese bearings, adjustable pump speed, integrated soft start and Maximum Power Point Tracking (MPPT). With max flows over 2,400L/hr at a price that can't be beat, you will quickly see why this pump is one of our biggest sellers.
Built to last in Australia's tough agricultural environment, this pump delivers solid volumes up to 90 metres of head. With our easy DIY installation, you can enjoy years of reliable and maintenance free water supply with Tuhorse!
Model: 3THS1.4-100-48/500
Pump Performance (w/ 4 x 200w Panels)
| Head (m) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| L/min | 43 | 40 | 38 | 34 | 30 | 25 | 19 | 15 | 10 |
Tech Specs
Pump Specs
| Pump power: | 500W/48V-DC |
| Pump type: | Helical screw rotor |
| Maximum Head: | 90m |
| Maximum flow: | 2,500 litre per hour |
| Maximum Submersion depth: | 40m |
| Outlet: | 0.75" |
| Weight: | 10kg |
| Dimension: | 430mm x 80mm |
What's in the box and set up requirements

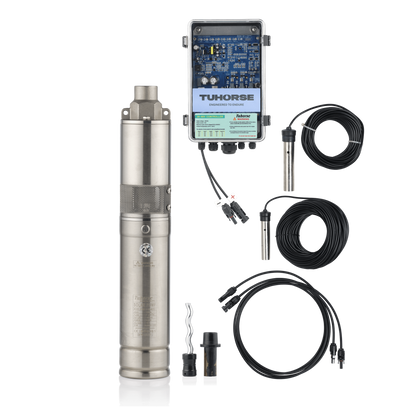

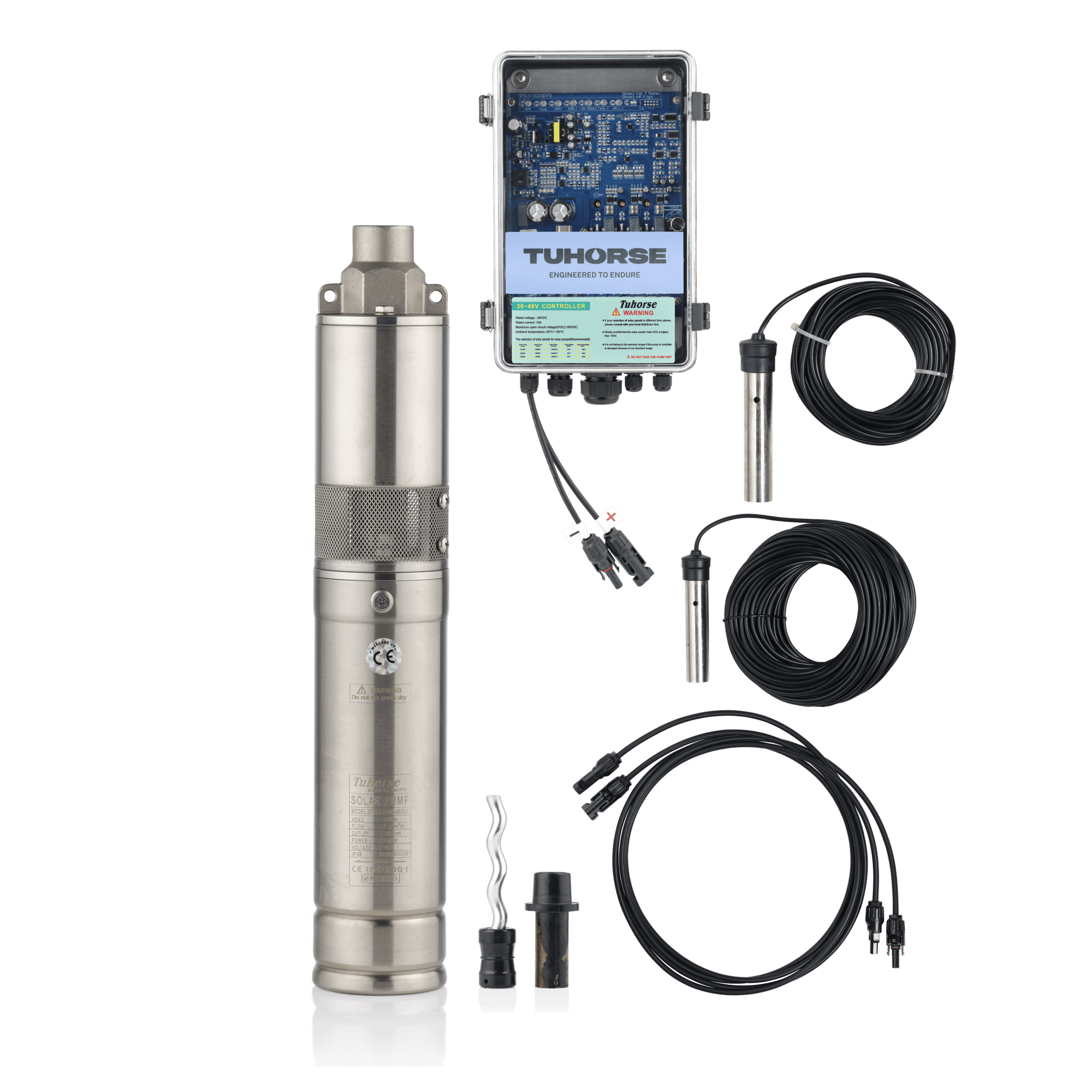

Your Package includes:
- 3"500w/48V stainless steel solar pump with 40M power cable
- Auto control box

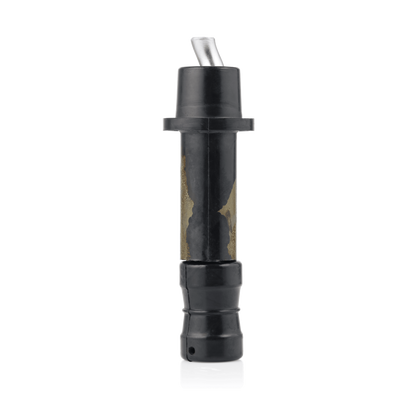

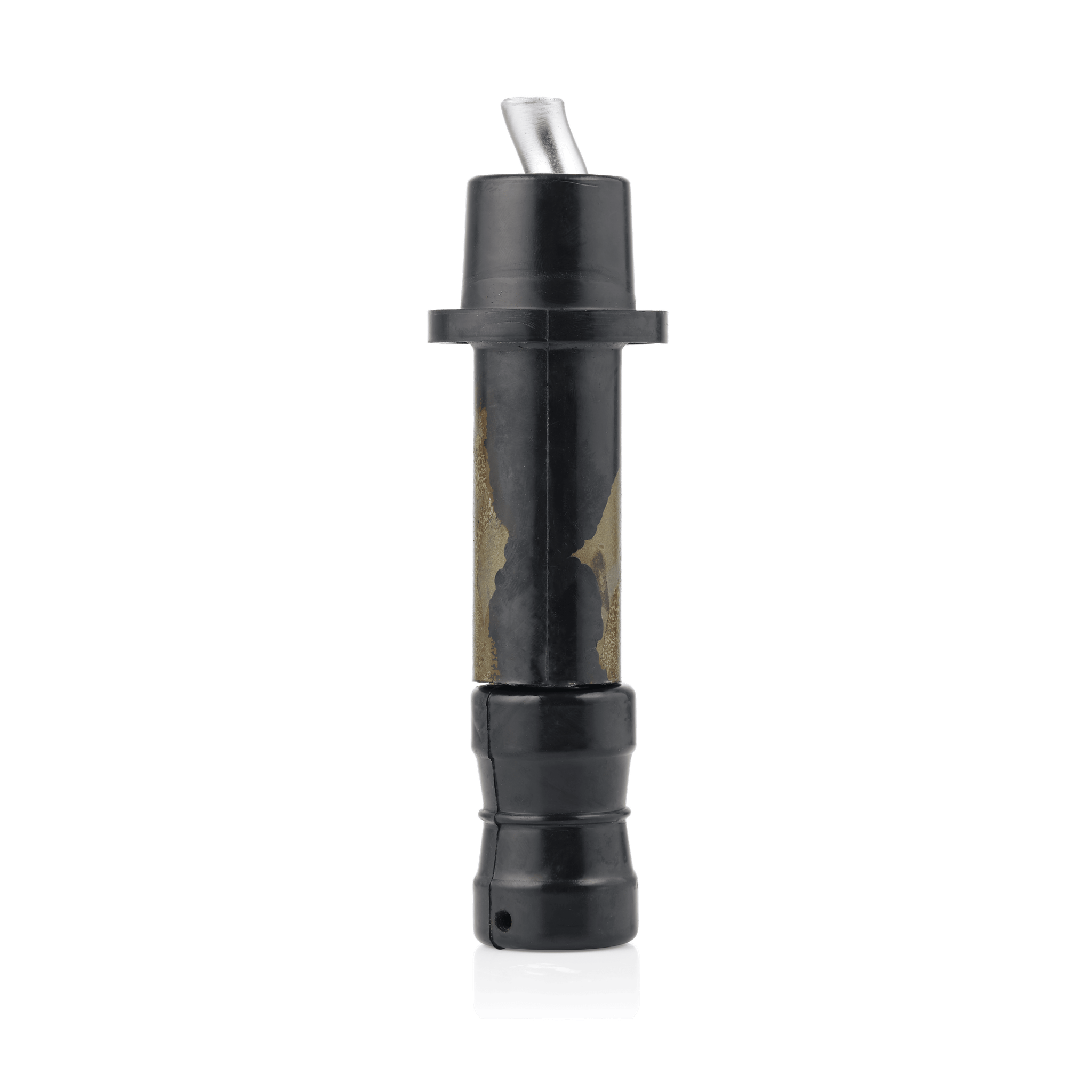

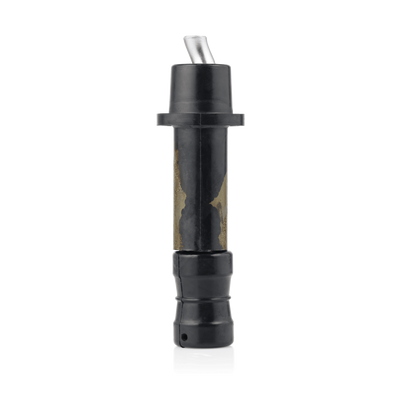

- One spare helical screw rotor
- 2 x MC4 extension cable for solar panels connect to control box
- 1 x 40M & 10M combined water sensor (for bore and water tank)
- User manual
- 24 months (Pump & Control Box) back to base (Sydney) warranty
Additional Items required for Installation:
- Poly delivery pipe General recommendation is 1.5” (40mm) or higher, high pressure/blue line poly
- Stainless Steel Safety Cable/Wire
- Non-return valve Installed right above the pump or on top of the bore
- Solar Panels- This package does not include panels. Please call us if you need to verify the specifications of your self sourced panels to work with our pump. Or purchase our Pump Packages with Panels
- Solar Panel Mounting Frame- Self Built or alternatively a Clenergy Solar Panel Mounting Kit
- Dam float- if pumping from a dam/river
- Bore Cap- if pumping from a bore
- Pressure switch- if tank is far away
- Double acting float valve- if using a Pressure Switch
- Flex conduit- to bury your cables
- Poly pipe connector/joiner + elbow + thread tape
Key System Components

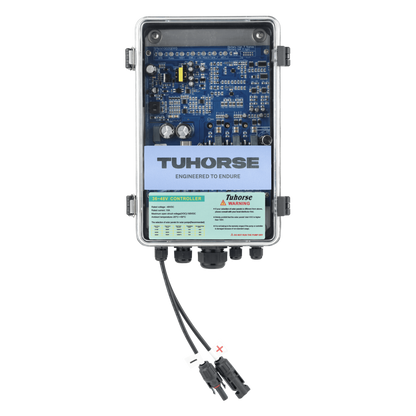

Tuhorse's 36v-48v Auto Control Box is suitable for a range of 2"-4" solar pumps, with input maximum open circuit voltage (Voc) of 100V/DC
Why Choose This Pump?
This pump is suitable for a 4" or larger bore. It is used for pumping water from rivers, dams, creeks and springs or transferring water from one site to another.
It is easy to install and costs nothing to run after installation. Discover why Tuhorse is Australia's most trusted pump for efficiency and reliability.
