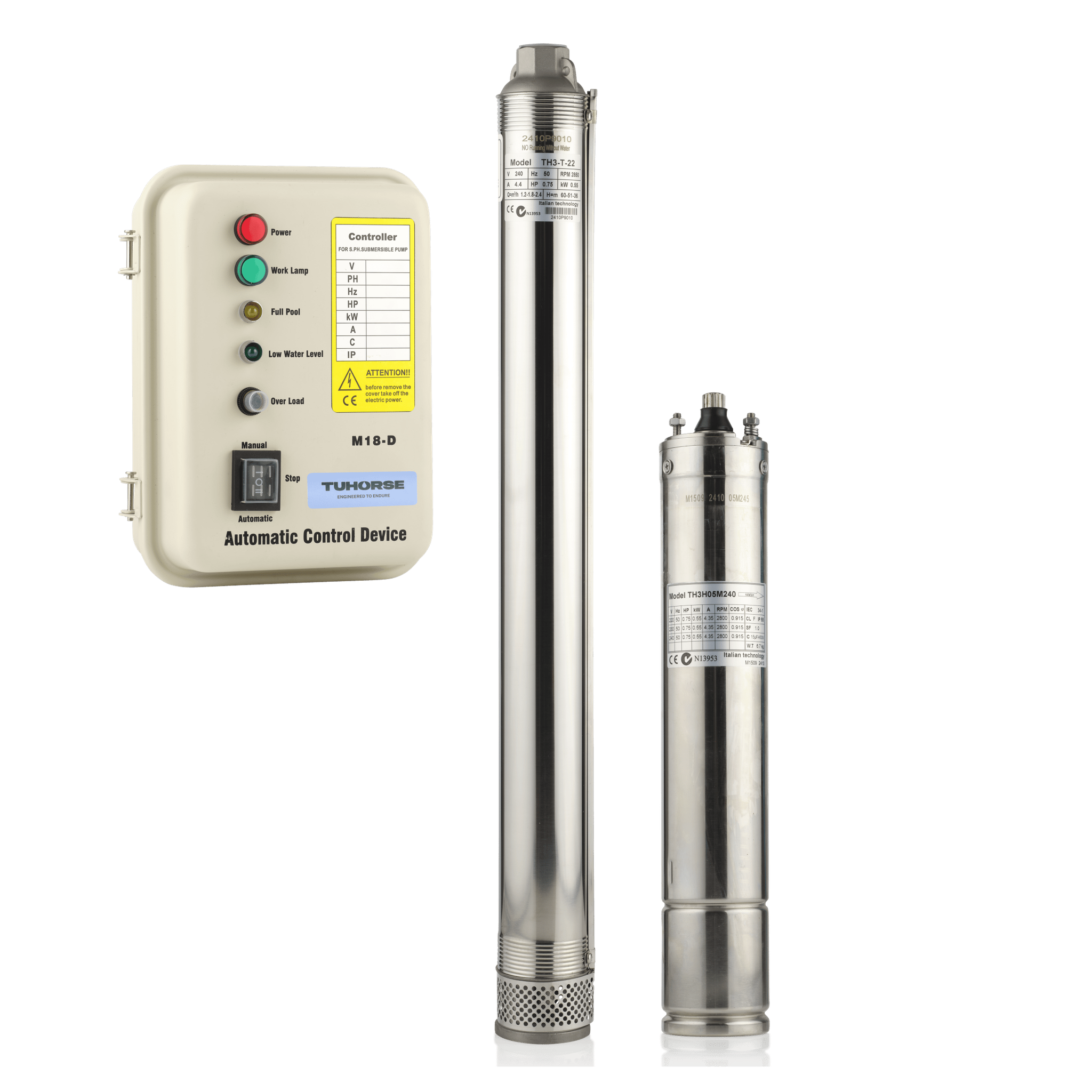

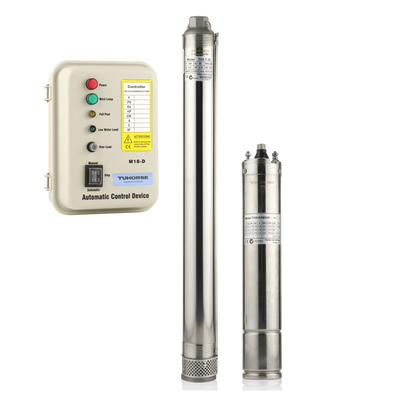

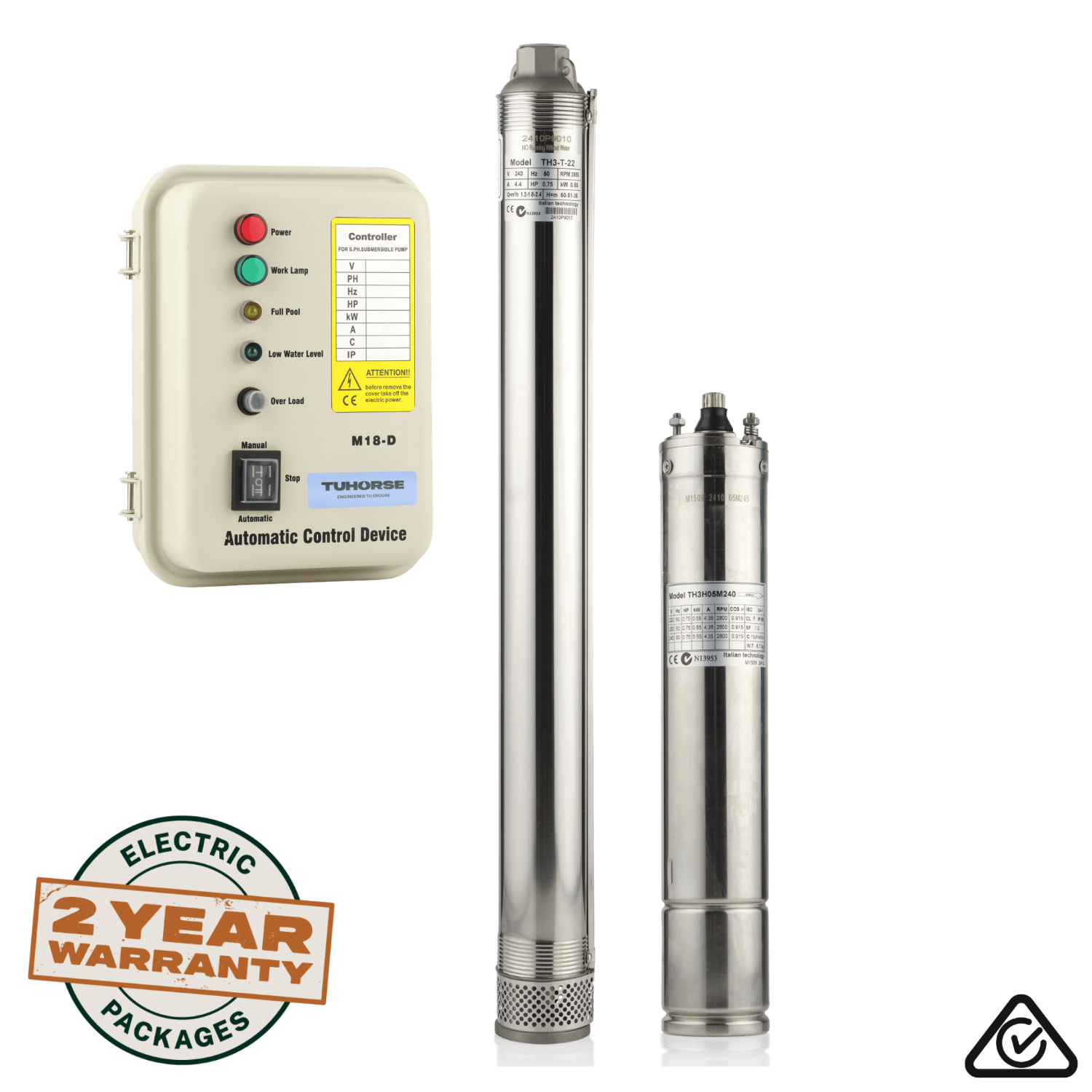

3" 0.75HP/240V T-22 Submersible Bore Pump Package
SKU: EEP001C
Tuhorse 3" Bore Pump – 0.75HP Power, 240V
Reliable 0.75hp Pump & Motor with optional Starter or Auto Control Box featuring 6 water sensors for automated water level management.
Suitable for 4" or larger bore wells, dams, or rivers

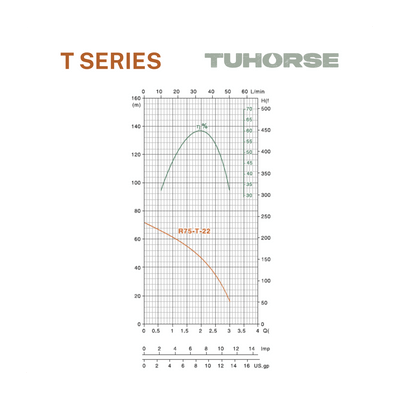

| Head (m) | 72 | 66 | 60 | 51 | 46 | 36 | 30 |
| L/min | 0 | 10 | 20 | 30 | 35 | 40 | 45 |
Tech Specs
Pump Specs
| Power: | 0.75HP/0.55kW |
| Model: | T-22 |
| Voltage : | Single Phase 240V/50Hz |
| Current: | 4.4A |
| Power cable Length: | 1.4m Flat water proof cable |
| Power cable Width: | 4 x 1.5mm |
| Max Heads: | 72M |
| Max Flow: | 45L/min |
| Maximum Submersion depth: | 100m |
| Inlet/Outlet: | 1" |
| Weight: | 10Kg |
| Pump Dimension: | 647mm x 75mm |
| Warranty: | 12 months return to base warranty in Australia |
What's in the box and set up requirements
- 3" 0.75HP 240V/50Hz Motor
- Tuhorse T-22/0.75HP Pump End

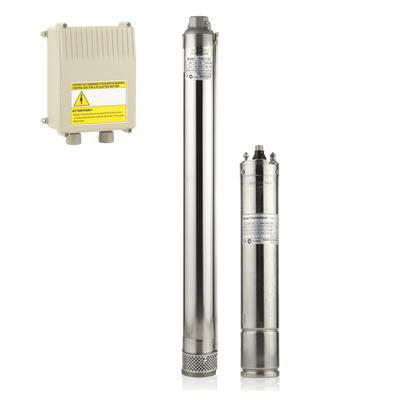

- Available with a Starter Box or an Auto Control box
- This pump should be installed by a certified Electrician
Key System Components
Auto Control Box Specifications
| Power: | 0.75HP/0.55kW |
| Voltage: | Single phase 240V/50Hz |
| Current: | 4.8A |
| Capacitor: | 25uf/450V |
| IP | 54 |
| Water sensors voltage: | 10V-12V |
| Control Switch: | Auto/Manual |
This is an automatic control box for 240V/50Hz single phase submersible pumps. When the automatic control box is installed, the pump will turn on and off automatically according to the water levels of both the tank and the well. If you switch the box to manual, it can work like a starter box.
Why Choose This Pump?
The 0.75HP motor delivers reliable water flow for domestic, agricultural, or light commercial use. It operates on 240V/50Hz, ideal for standard Australian power systems.
Choose the Auto Control Box with 6 water sensors for intelligent water level detection. It automatically shuts off or restarts based on bore or tank levels-no manual monitoring needed.
